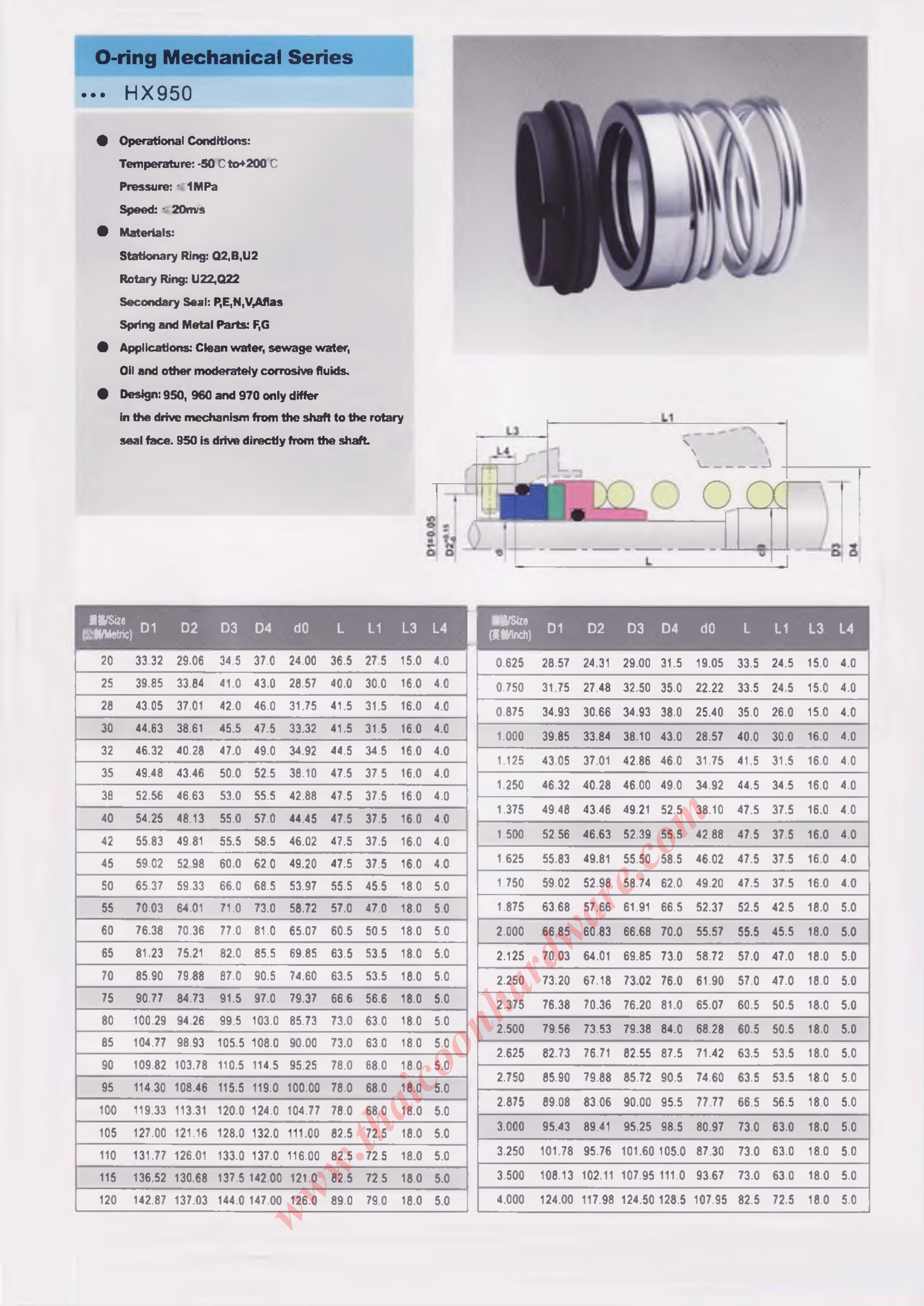

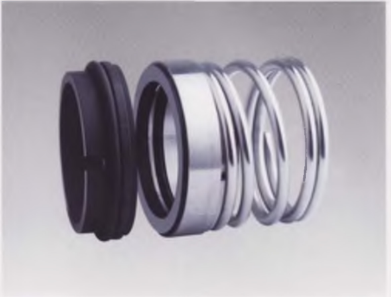

o-ring mechanical series hx950

Operational Conditions
Temperature	-50˚C to+ 200˚C
Pressure	≤1MPa
Speed	≤20m/s
Materials
Stationary Ring	Q2,B,U2
Rotary Ring	U22,Q22
Secondary Seal	P,E,N,V,Aflas
Spring and Metal Parts	F,G
Appllcations	Clean water,sewage water, Oil and other moderately corrosive fluids
Design	950,960 and 970 only differ in the drive mechanism from the shaft to the rotary seal face 950 is drive directly from the shaft
