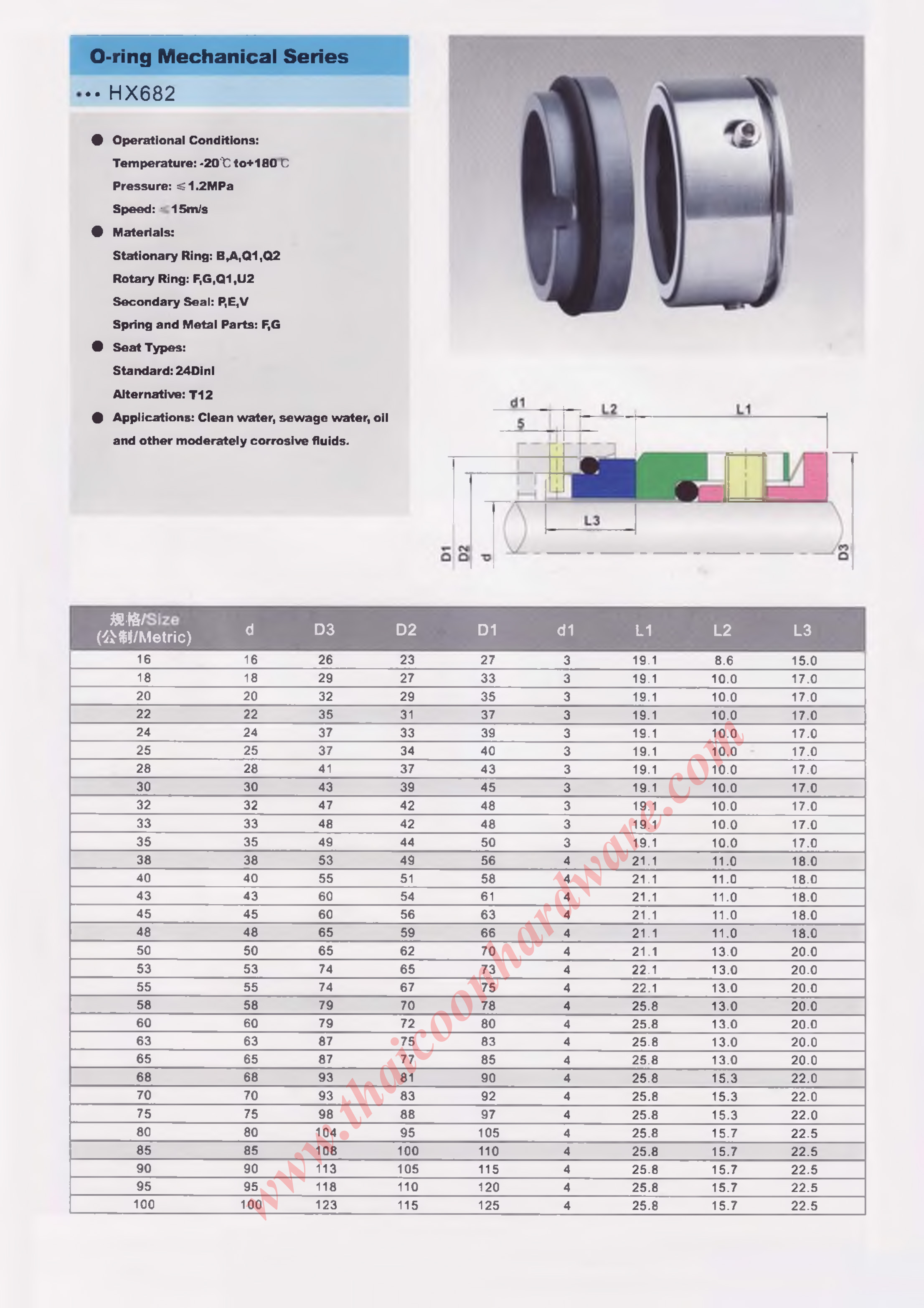

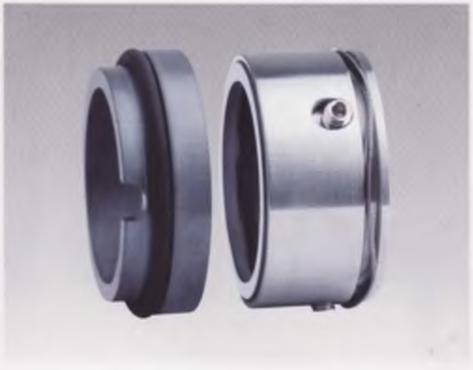

o-ring mechanical series hx682

Operational Conditions
Temperature	-20˚C to+ 180˚C
Pressure	≤1.2 MPa
Speed	≤15m/s
Materials
Stationary Ring	B,A,Q1,Q2
Rotary Ring	F,G,Q1,U2
Secondary Seal	P,E,V
Spring and Metal Parts	F,G
Seat Types
Standard	24Dinl
Altemative	T12
Appllcations	Clean water,sewage water, Oil and other moderately corrosive fluids
