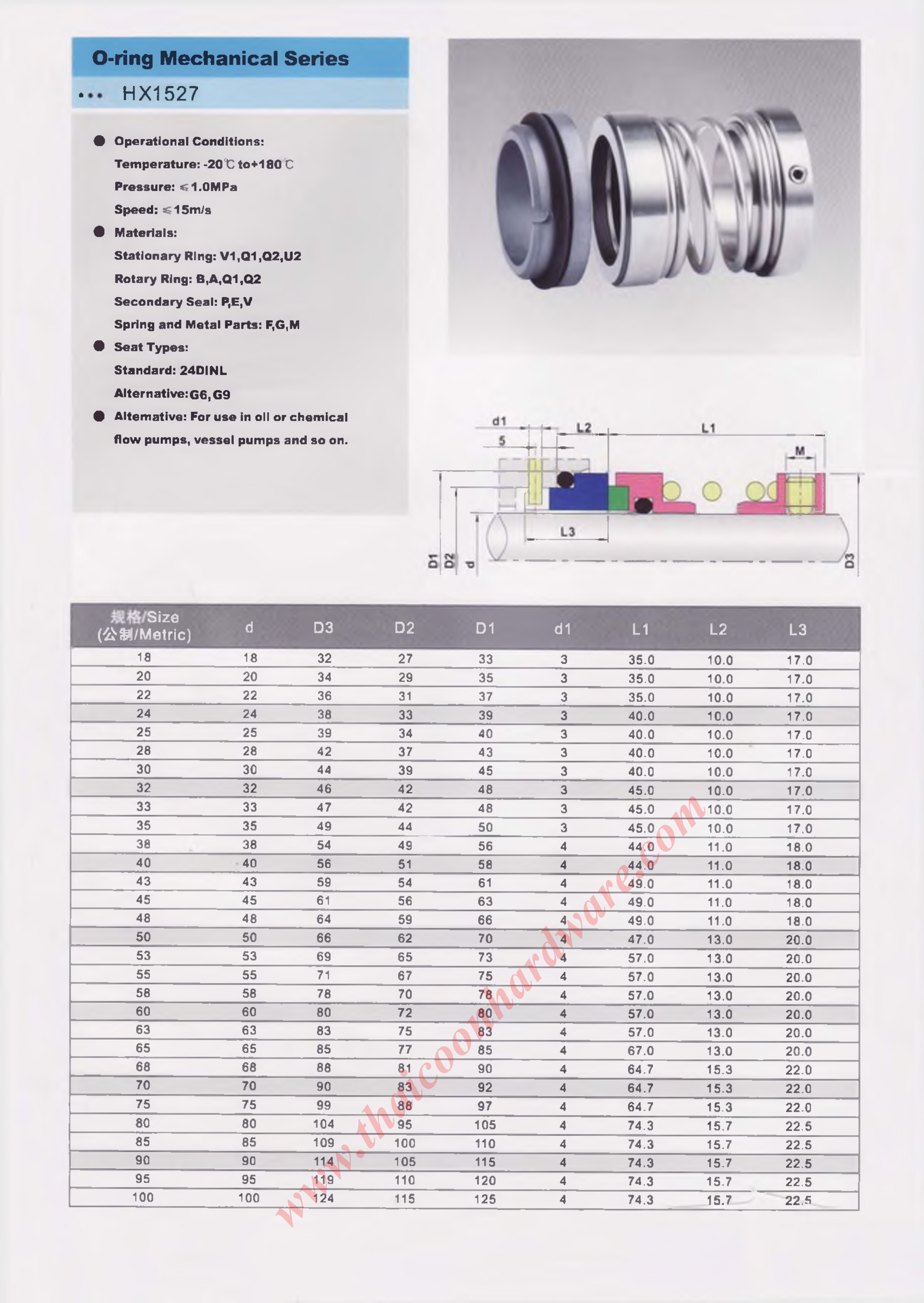

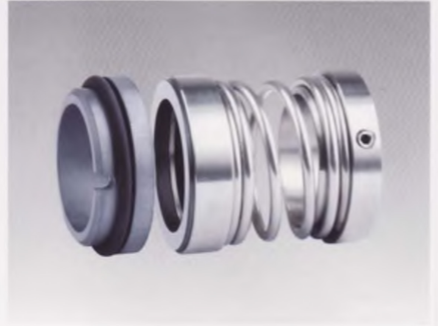

o-ring mechanical series hx1527

Operational Conditions
Temperature	-20˚C to+ 180˚C
Pressure	≤1.0 MPa
Speed	≤15m/s
Materials
Stationary Ring	V1,Q1,Q2,U2
Rotary Ring	B,A,Q1,Q2,U2
Secondary Seal	P,E,V
Spring and Metal Parts	F,G,M
Seat Types
Standard	24DINL
Altemative	D6,G9
Appllcations	For use in oil or chemical flow pumps,vass pumps and so on
