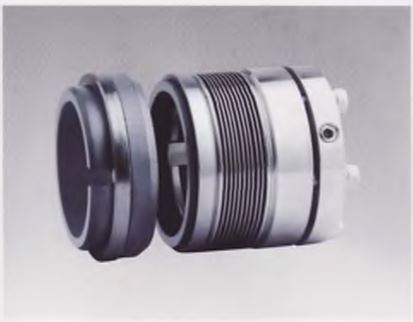

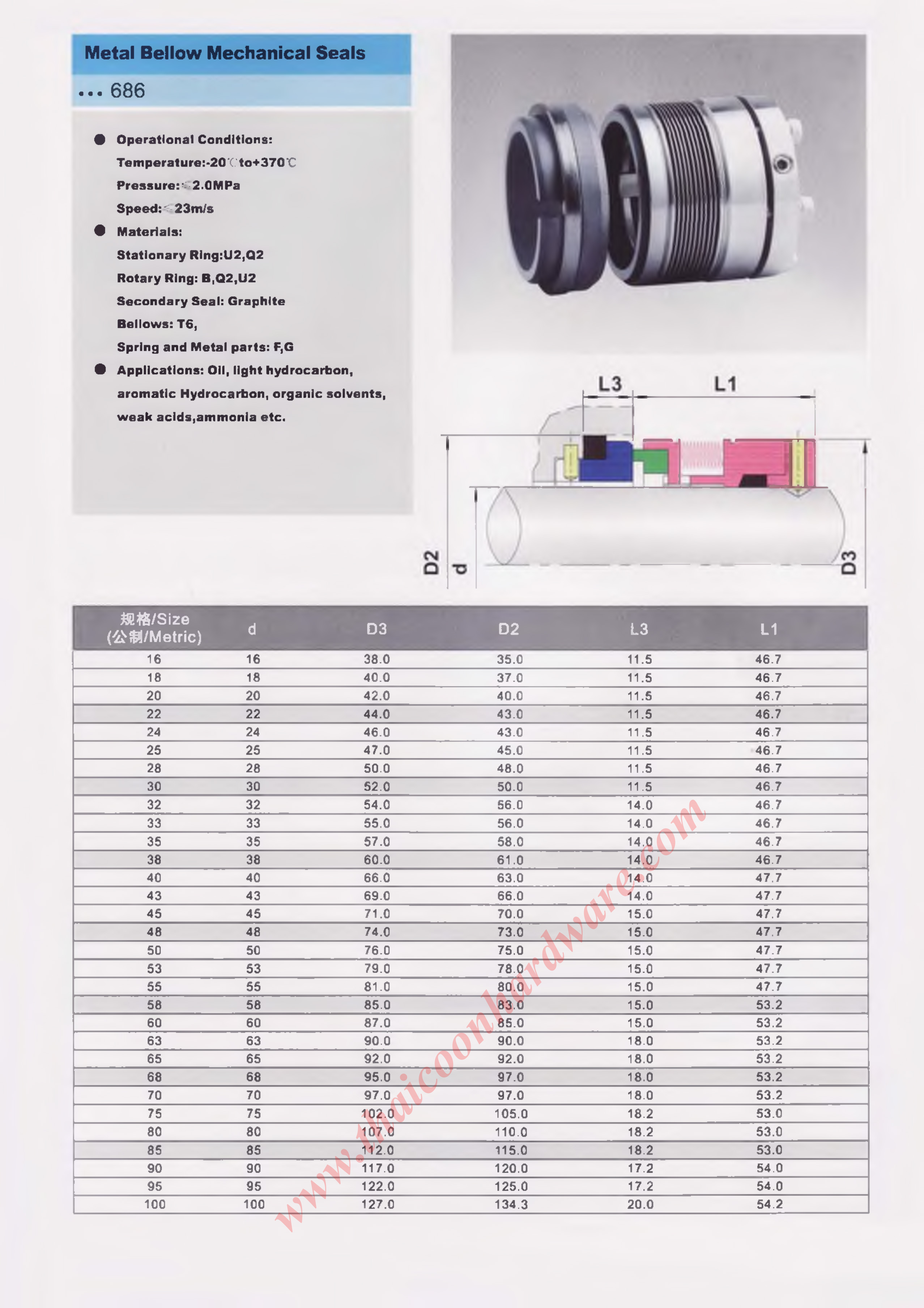

metal bellow mechanical seals 686

Operational Conditions
Temperature	-20˚C to+ 370˚C
Pressure	≤2.0MPa
Speed	≤23m/s
Materials
Stationary Ring	U2,Q2
Rotary Ring	B,Q2,U2
Secondary Seal	Graphite
Bellow	T6
Spring and Metal Parts	F,G
Appllcations	Oil, light hydrocarbon, aromic Hydrocarbon, organic solvents, weak acids, ammonia etc.
