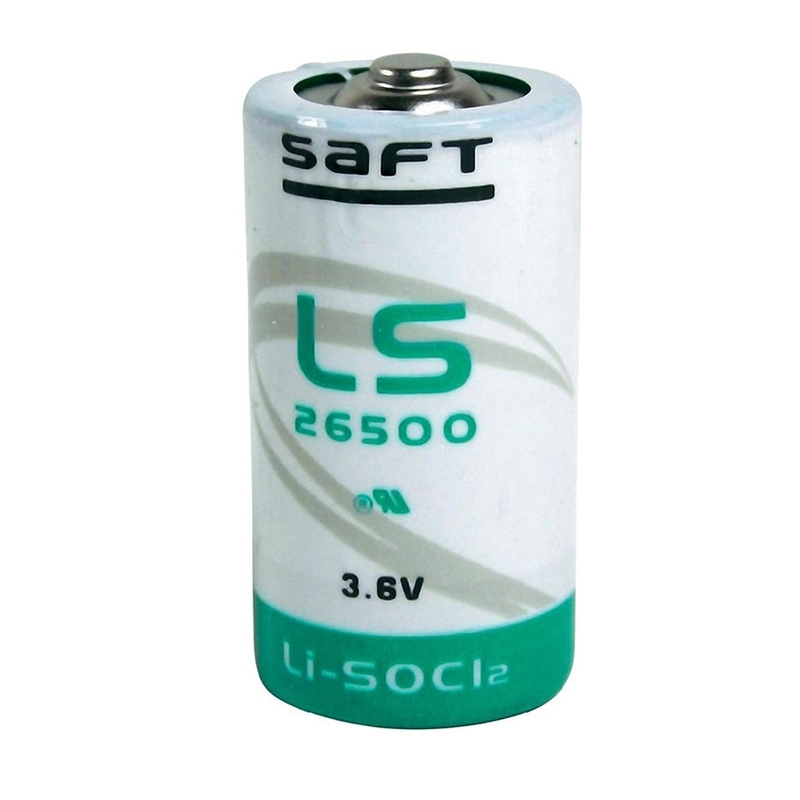

Saft 26500 Lithium Battery

ชื่อสินค้า	แบตเตอรี่ LS Saft 26500 3.6 V Li-SOCl2 Lithium Battery
รุ่น NO.:	LS-26500
ประเภท:	Li-SOCl2 Lithium Battery<
แรงดัน:	3.6 V
ขนาด:	26.0 mm (D) * 50.4 mm (H)

แบตเตอรี่ LS Saft 26500 3.6 V Li-SOCl2 Lithium Battery
P/N:LS-26500

Specification
Nominal capacity : 7.7 Ah
(at 4 mA +20°C 2.0 V cut-off. The capacity restored by the cell varies according to current drain, temperature and cut-off)
Open circuit voltage (at +20°C) : 3.67 V
Nominal voltage (at 0.5 mA + 20°C) : 3.6 V
Nominal energy : 27.72 Wh
Maximum recommended continuous current : 150 mA
Storage (recommended) : +30°C (+86°F) max
Operating temperature range : - 60°C/+85°C

Physical characteristics
Diameter (max) : 26.0 mm (1.02 in)
Height (max) : 49.1 mm or 50.4 mm (1.93 in or 1.98 in) depending on finish type
Typical weight : 48 g (1.7 oz)
Li metal content : approx. 2.0 g

Replacement for:
ETERNACELL, OMNICEL, NSN, SAFT, SIEMENS, TADIRAN, XENO
6135-01-435-5558
6EW1-000-7AA
6EW10007AA
ER26500
LS26500
T52/41
T52/51
TL-2200
TL-4920
TL-5920
XL-145F
